Tenon Cutters
   Industrial Grade

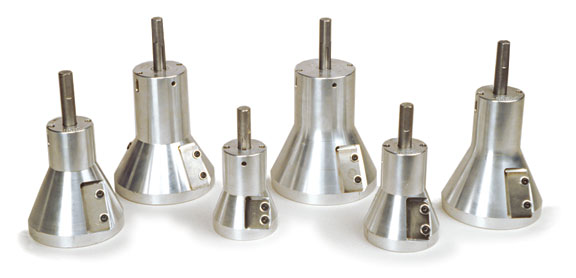

   The Barker Tenon Cutter
        Made with high grade industrial aluminum.

The tenon length is adjustable by simply adjusting the stop with a
set screw. Once it is set, you can keep cutting tenons without looking through viewers!
  You get the same tenon length each cut.  Blades are made of high carbon steel and are removable for sharpening or replacement.  These Standard Barker Features  are what make it the best tenon cutter on the market.
Each tenon cutter is available as a single or double blade model. Triple blade tenon cutters are available for some sizes and are an additional $50.00  A single blade cutter will require less power from the drill to cut the stock and will take just a few seconds longer to complete the cut.  You will need a strong drill. We recommend the Milwaukee Hole Hawg 1/2" drill (model 1663-20) for logs up to 4 inches in diameter. If you are working with logs that are larger than 4" in diameter, then we suggest a Milwaukee 3/4" drill ( model 1854-1).The 3/4" drill can be used on ANY size of log.




SCROLL DOWN
TO SEE ALL
OUR TENON CUTTERS!

     To Buy Now click on the Tenon Cutter Size in the chart below......

Barker Tenon Cutters
Barker Tenon Cutter
Size
Max. Log
Diameter
Adjustable Tenon Length
Retail
Price
Sale
Price
up to 2 ½”
0” to 2”
$350.00
$239.00
up to 3”
up to 2”
$350.00
$259.00
up to 3 ½”
up to 2”
$375.00
$279.00
up to 4”
up to 2”
$375.00
$279.00
up to 4 ½”
up to 3 ¼”
$375.00
$299.00
up to 5”
up to 3 ½”
$450.00
$379.00
up to 5”
up to 3 ½”
$450.00
$379.00
up to 5”
up to 3 ½”
$450.00
$379.00
up to 5 ½”
up to 3 ½”
$475.00
$399.00
up to 6”
up to 3 1/4”
$600.00
$499.00
up to 6”
up to 3 1/4”
$600.00
$499.00
2 9/16" X 6" SALE up to 6"
up to 3 1/4”
$600.00
$499.00
up to 6”
up to 3 ½”
$525.00
$475.00
up to 6”
up to 3 ½”
$550.00
$499.00
up to 8”
up to 2”
$700.00

up to 8”
up to 3 ¼”
$700.00

up to 8”
up to 3 ¼”
$700.00

Large 2 9/16" x 8" up to 8" up to 3 1/4" $700.00
up to 8”
up to 3 ¼”
$700.00

up to 8”
up to 3 ½”
$700.00

up to 8”
up to 3 ½”
$700.00




Barker Triple Blade Tenon Cutters
Barker TRIPLE  Blade
Tenon Cutter
Size
Max. Log
Diameter
Adjustable Tenon Length
Retail
Price
Sale
Price
up to 2 1/ 2"
up to 2"
$400.00
$289.00
up to 3"
up to 2"
$400.00
$309.00
up to 4”
up to 2”
$475.00
$329.00








Tenon Master Large 8

These are a heavy-duty design made of machined high-grade aluminum with
two built-in bubble levels for precise tenons.  These custom tenons will produce
longer tenons to create custom joints such as peg construction. Tenon Master are
also available in specialty Extra Large sizes and we have what we call a point cutter as
seen in the picture above that can be used as a "stake maker".  See the sizes available below.


To Buy Now click on the Tenon Cutter Size in the chart below......


Tenon Master Tenon Cutters
Tenon Master
Tenon Cutter
Size
Max. Log
Diameter
Adjustable Tenon Length
Retail
Price
Sale
Price
up to 2 ¾”
point
$400.00

4 ½”
point
$400.00
$379.00
             1" x 3" x 6" Long       up to 3"            up to 6"     $450.00
up to 4”
up to 8”
$475.00

up to 4”
up to 11”
$525.00

up to 4 ½”
up to 8”
$475.00

up to 4 ½”
up to 11”
$525.00

up to 5”
up to 8”
$550.00

up to 5”
up to 11”
$600.00

up to 4 ½”
up to 2”
$350.00
$229.00
up to 5”
up to 2”
$375.00
$239.00
up to 5 ½”
up to 3 1/4”
$375.00
$259.00

Blue Ox Tenon Cutter

A Heavy-duty steel cutter.  A good choice for very high volume builders.

To Buy Now click on the Tenon Cutter Size in the chart below......



Blue Ox Tenon Cutters

Tenon Cutter
Size

Max Log
Diameter

Max Tenon
Length

Best
Buy

1" x 2 1/2"

up to 2 1/2"

up to 2 1/2"

$ 395.00

1 1/2" x 3 1/2"

up to 3 1/2"

up to 2 1/2"

$ 425.00

2" X 4 1/2"

up to 4 1/2"

up to 3 1/4"

$ 495.00


Northwest Tenon Cutter
      A good lightweight tenon cutter made of cast high-grade aluminum.
This tenon cutter is a double blade cutter only.  We recommend
a 3/4" drill for the 2" and 2 1/2" tenon sizes
.

To Buy Now click on the Tenon Cutter Size in the chart below......



Northwest Tenon Cutters

Tenon Cutter
Size

Max Log
Diameter

Max Tenon
Length

Best
Buy

1" x 2 1/2"

up to 2 1/2"

up to 2 1/2"

$ 425.00

1 1/2" x 3 1/2"

up to 3 1/2"

up to 2 1/2"

$ 445.00

2" x 4 1/2"

up to 4 1/2"

up to 3 1/4"

$ 490.00

2 1/2" x 5"

up to 5"

up to 3 1/4"

$ 540.00
